Circuit Breaker Size

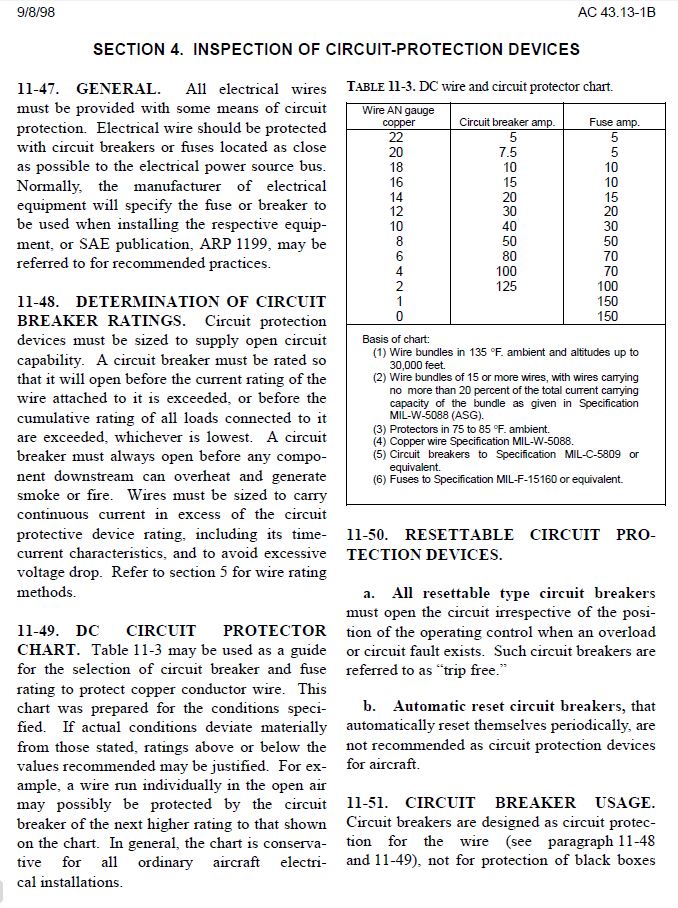

See FAA AC 43.13-1B for guidelines on aircraft wiring and circuit breaker sizes:

http://www.faa.gov/regulations_policies/advisory_circulars/index.cfm/go/document.information/documentid/99861

• Related Articles

• V6 Radio Dimensions and Size

  Attached is the dimension outline of the V6 Radio

• MGL ECB Manuals

  Attached are the manuals and serial protocols for the MGL Avionics Electronic Circuit Breaker System.

• iEFIS Discovery-Lite Weights and Current Draws

  Below are the system weights and Current loads of the iEFIS Discovery-Lite. We recommend putting all EFIS-Lite system components on a 3 or 5 Amp Circuit Breaker. If radio and transponder are used, these can be placed on another 5 Amp Circuit breaker. ...

• XTreme EFIS Weights and Current Draws

  Below are the system weights and Current loads of the XTreme mini EFIS/EMS. We recommend putting the EFIS system components on a 5 Amp Circuit Breaker. If radio and transponder are used, these can be placed on another 5 Amp Circuit breaker. If ...

• ECB Switch Kit LED Orientation

  When assembling the ECB (Electronic Circuit Breaker) Switch Kit, the FLAT side of the LED light goes on the LEFT side when looking at the PCB in this orientation (from the front with the switch at the top): ​
