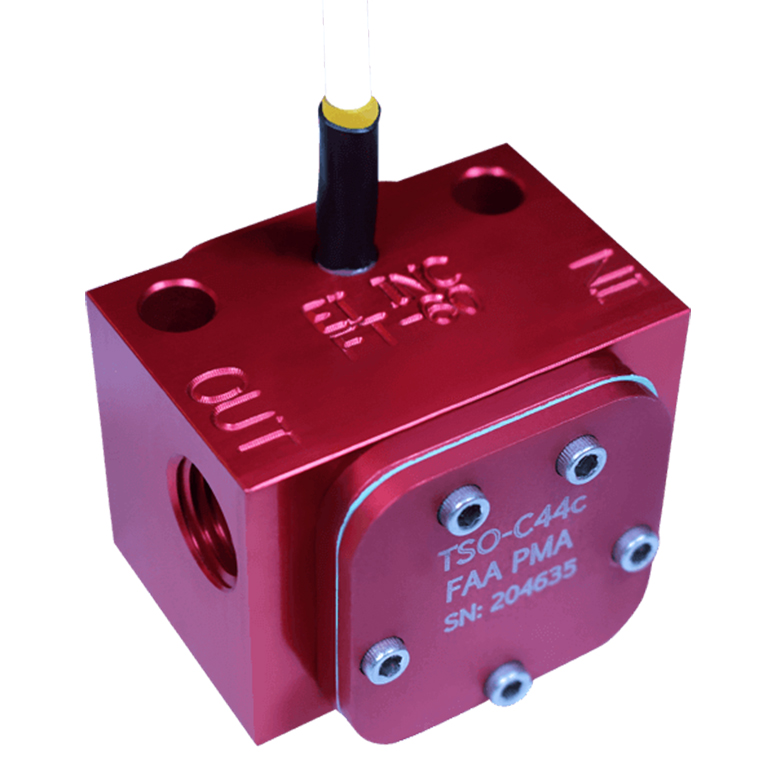

FT-60 Red Cube (and FT-90 Gold Cube) Fuel Flow Sensor Manuals
FT-60 Red Cube (and FT-90 Gold Cube) Fuel Flow Sensor Manuals
Related Articles
What is the K-Factor of the FT-60 Red Cube Fuel Flow Sensor?
The K-Factor of all FT-60 Red Cube Fuel Flow transducers is the same: 18,000 (Note: MGL Avionics uses Liters K-factors for flow sensors)What is the K-Factor of the FT-90 or FT-180 Fuel Flow Sensors?
The K-Factor of all FT-90 Gold Cube and FT-180 Black Cube Fuel Flow transducers is the same: (Note: MGL Avionics uses Liters K-factors for flow sensors)Fuel Flow Sensor (Plastic Model) Manual
Attached is the manual for the plastic Fuel Flow Sensor.Fuel Flow Sensor Common Problems (Plastic Model)
The most common problems with the plastic fuel flow sensor not giving a reading (or given a low reading) are: Restrictor jet not installed correctly: The small restrictor jet is included with the flow sensor and needs to be installed in engines with ...Fuel Flow Sensor (plastic) K-factors and Jet Sizes
Please see the attached table for K-factors and Jet Sizes for the plastic Fuel Flow Sensor: Fuel Flow Sensor Jet Sizes l/Gal Flow Rates 3.785 l/Min Gal/hr Min Max Min Max K-Factor Jet (803) 1mm 0.05 0.5 0.8 7.9 17000 Jet (815) 2mm 0.10 1.5 1.6 23.8 ...
