Harness Schematic for Sandia STX-165R and Navworx ADS600-EXP ADS-B

Harness Schematic for Sandia STX-165R and Navworx ADS600-EXP ADS-B

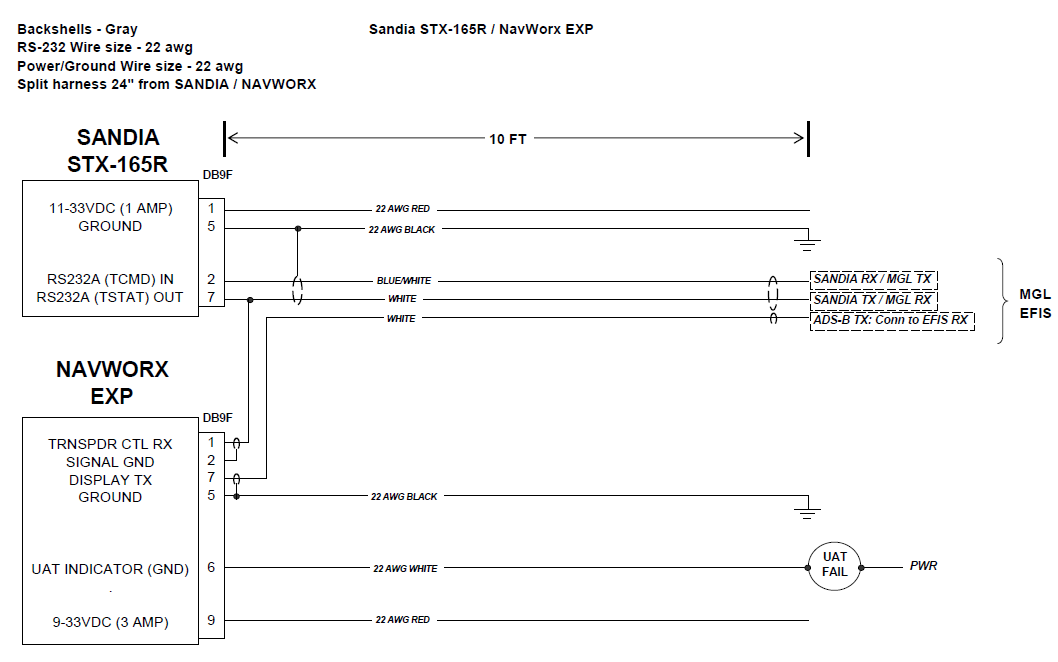

Attached is the schematic for the available combined H-Navworx/STX165R harness for connecting both the Navworx ADS600-EXP ADS-B (Experimental) and the Sandia STX-165R Remote Mode C Transponder.

The RS-232 wires from the STX-165R can be connected to any channel on the iBox or any channel on the iEFIS Lite or iEFIS Extender.

The RS-232 wire from the Navworx (ADS-B TX) must be connected to a high speed RS-232 RX channel (either channel 1 or channel 2 on the iBox or ANY RS-232 channel on the iEFIS Lite or iEFIS Extender).

See this article for full setup instructions.
