iBox and iEFIS Extender Analog Inputs Remote Control Functions

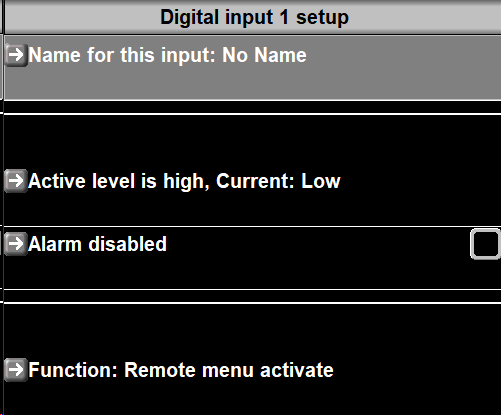

The iBox and iEFIS Extender Analog Inputs have a selection of Remote Control Functions available by selection. These functions are normally activated with hat switches and buttons on the control stick. Applying Power to one of the Analog/Digital inputs momentarily activates the function. If you need to apply Ground for the function, click here for instructions.

Available remote control functions include:

• Remote Menu Activate (brings up a remote menu with various functions like altimeter setting and page advance - image below)
• Remote Menu Up
• Remote Menu Down
• Remote Menu Select
• Transponder Ident
• Stopwatch Start/Stop
• Stopwatch Reset
• Countdown Start/Stop
• Alarm Acknowledge
• Flight Active Detect
• Vario Tone Switch
• AOA Tone Switch

• COM 1 Frequency Flip
• COM 2 Frequency Flip
• EFIS Next Page
• EFIS Previous Page
• EFIS Next Info
• EFIS Previous Info
• EFIS Baro Up
• EFIS Baro Down
• EFIS Audio On/Off
• AP Active NAV/Level
• AP Active NAV/VSI
• AP Turn 180/Level
• AP Straight/Level
• Descent Detection
• Transponder Squat Switch

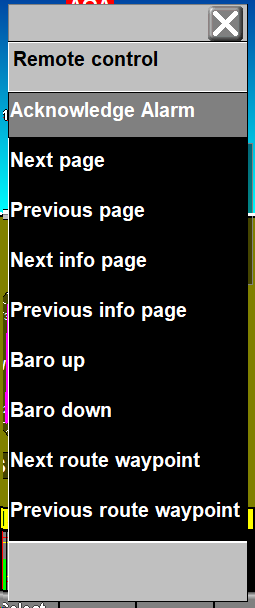

Remote Menu:
