iEFIS-Lite to V6 RS-232 Connection Diagram

iEFIS-Lite to V6 RS-232 Connection Diagram

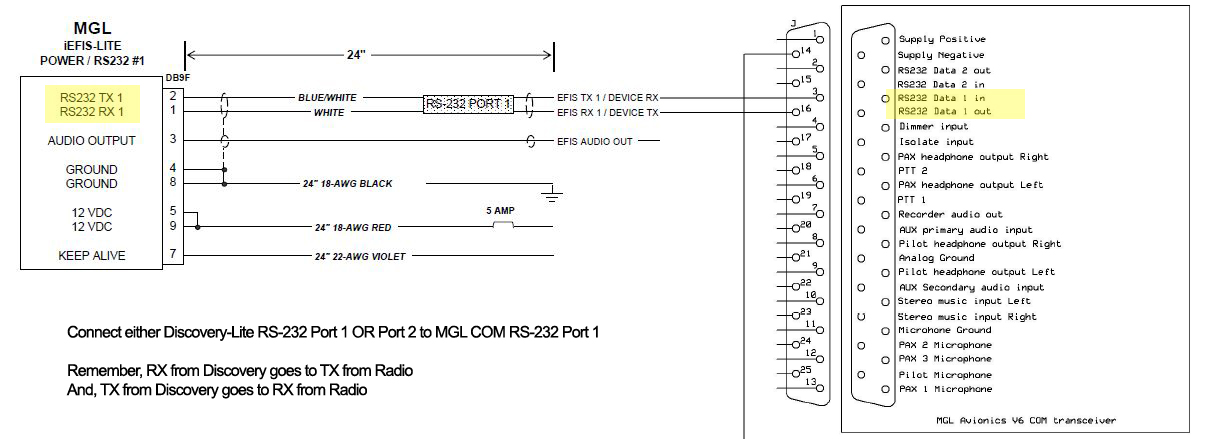

Below is the connection diagram diagram for the iEFIS-Lite to V6 Com Radio. You can use either RS-232 Port 1 OR RS-232 Port 2 on the iEFIS-Lite (Discovery-Lite, Explorer-Lite, Challenger-Lite). You can also use any of the RS-232 Ports on the iEFIS Extender, if connected.

  • Connect either RS-232 on the iEFIS-Lite to RS-232 Port 1 on the Radio.
  • Remember that RX on the Lite goes to TX on the Radio and TX on the Lite goes to RX on the Radio



When connecting the V6 to the iEFIS Lite you can also connect the EFIS Audio alert output (pin 3 on Power Connector) to the AUX Primary Audio Input (pin 20 on the V6 Radio), to have voice alerts through your headset from the iEFIS. It is recommended that you run this through a panel switch so that you can turn off audio and voice alerts if they become too intrusive.

Setup:

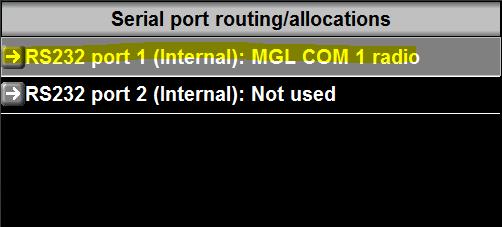

To Setup the V6 Com Radio on the iEFIS-Lite, first setup MGL COM 1 radio on the correct serial port in MENU > SYSTEM SETUP MENU > SERIAL PORT ROUTING/ALLOCATIONS:

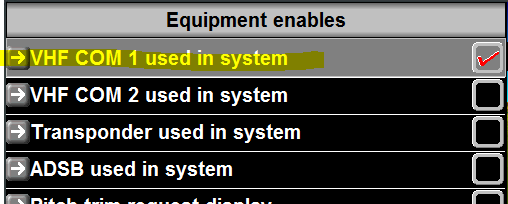

Then, enable VHF COM 1 in the MENU > SYSTEM SETUP MENU > EQUIPMENT ENABLES menu:



Then, exit setup to save settings and then restart the system (turn power off and on again). Restarts are required between RS-232 allocation changes.

You can verify bidirectional communications by changing the frequency on the radio and watching it change on the EFIS radio indication, and vice versa:


​
