N16 and Razor/Vega Harness Schematics

N16 and Razor/Vega Harness Schematics

Herewith harness schematics and wiring for the available harness for the N16 Nav Radio. The harness allows it to be connected via the MGL NAV/COM CAN bus to other MGL Nav radios (N16), Com Radios (V16) and Vega/Razor Control Heads.

Available as a complete harness for 1 head and 1 Nav Radio:

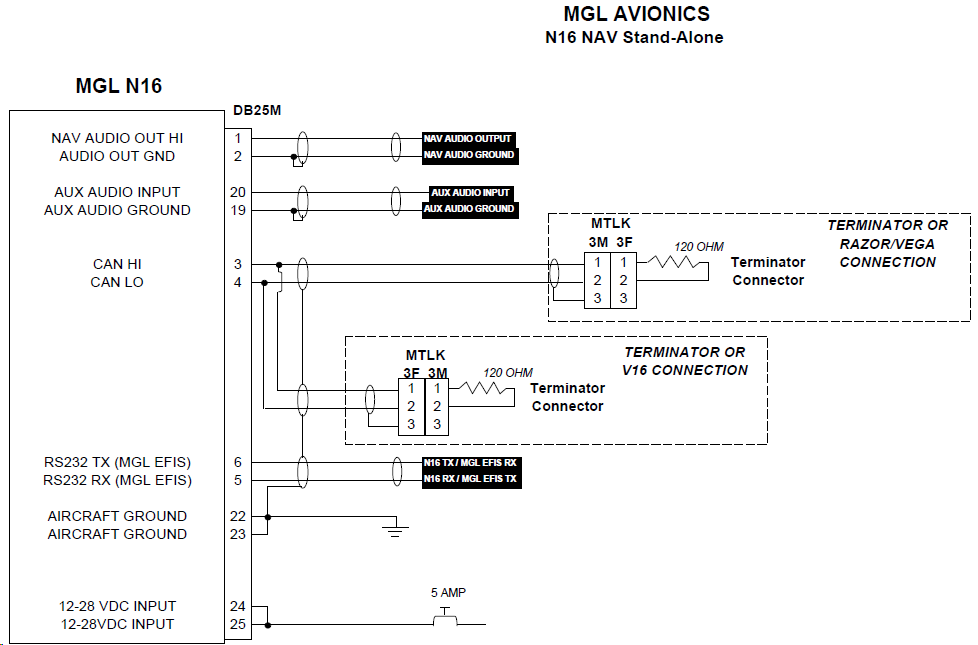

Also available as just an N16 harness (to add N16 Nav to existing V16 setup):

‚Äč
