Attached is the manual for the RDAC XG.

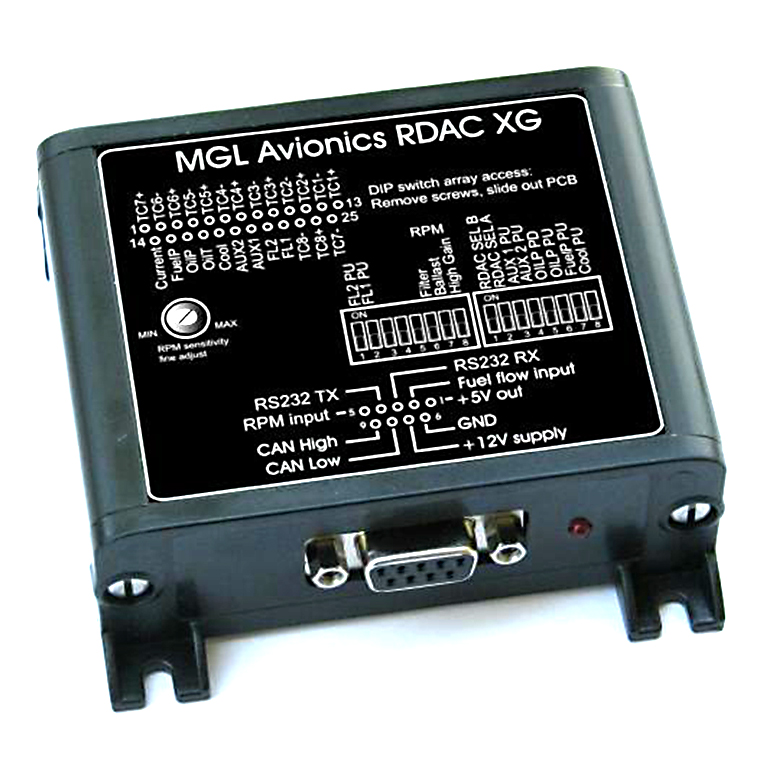

The RDAC XG is a compact version of the RDAC XF Engine monitor module and can be used used with XTreme, Odyssey G2, Voyager G2 and all iEFIS systems.

The RDAC XG provides a CAN bus interface. Further to this an RS-232 interface is provided allowing third party (OEM) use of the RDAC system.

The RDAC XG is fully compatible with the larger RDAC XF subject to the following differences:

  • 8 Channels Thermocouple system (vs 12 channels in the RDAC XF)
  • 1 RPM input (vs 2 in the RDAC XF)
  • 1 Fuel flow sender input (vs 2 in the RDAC XF)
  • No manifold pressure sensor option
  • The RDAC XF uses convenient screw terminals for connection of senders while the RDAC XG uses DB9 and DB25 connectors with supplied pre-made cables.
