SP-12 TABS GPS Manual and Harness Schematic and ADS-B setup manual

SP-12 TABS GPS Manual and Harness Schematic and ADS-B setup manual

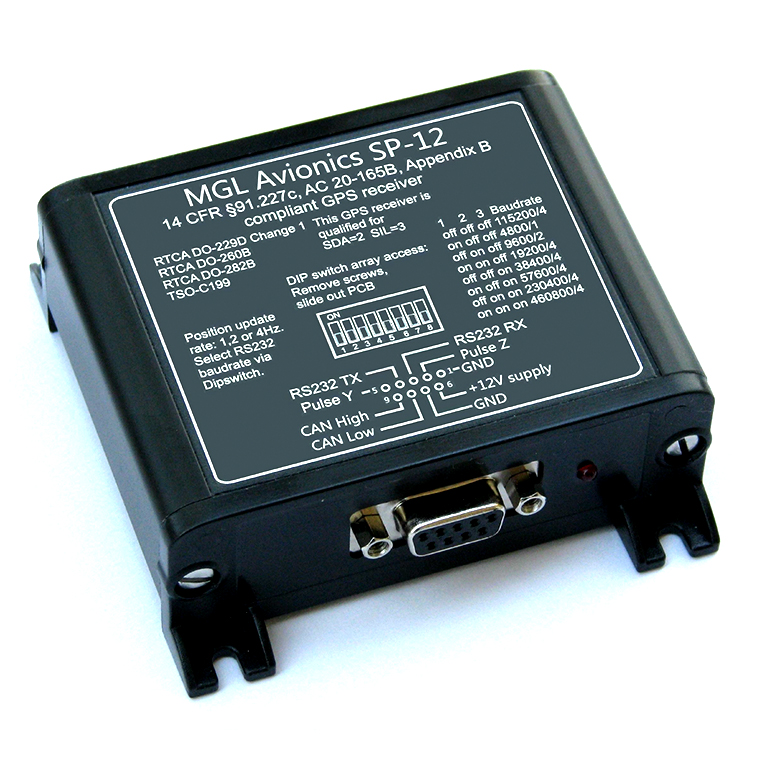

Below is the manual and wiring schematic (for the available harness) for the MGL Avionics SP-12 GPS (for 2020-compliant position sourcing for ADS-B Out devices for Experimentals and LSAs). Also, the iEFIS Mode-S and ADS-B Setup Instructions are included

The SP-12 is based on the Aspen Avionics NexNav Micro-i GPS module used by several avionics manufacturers. It provides a simple and low cost solution to the FAA 2020 mandate. It provides the standard Micro-i NMEA output on RS232 but adds user selectable baudrates (the default is the standard 115200 baud used by the Micro-i module).




​
