V16 and Razor/Vega Harness Schematics

V16 and Razor/Vega Harness Schematics

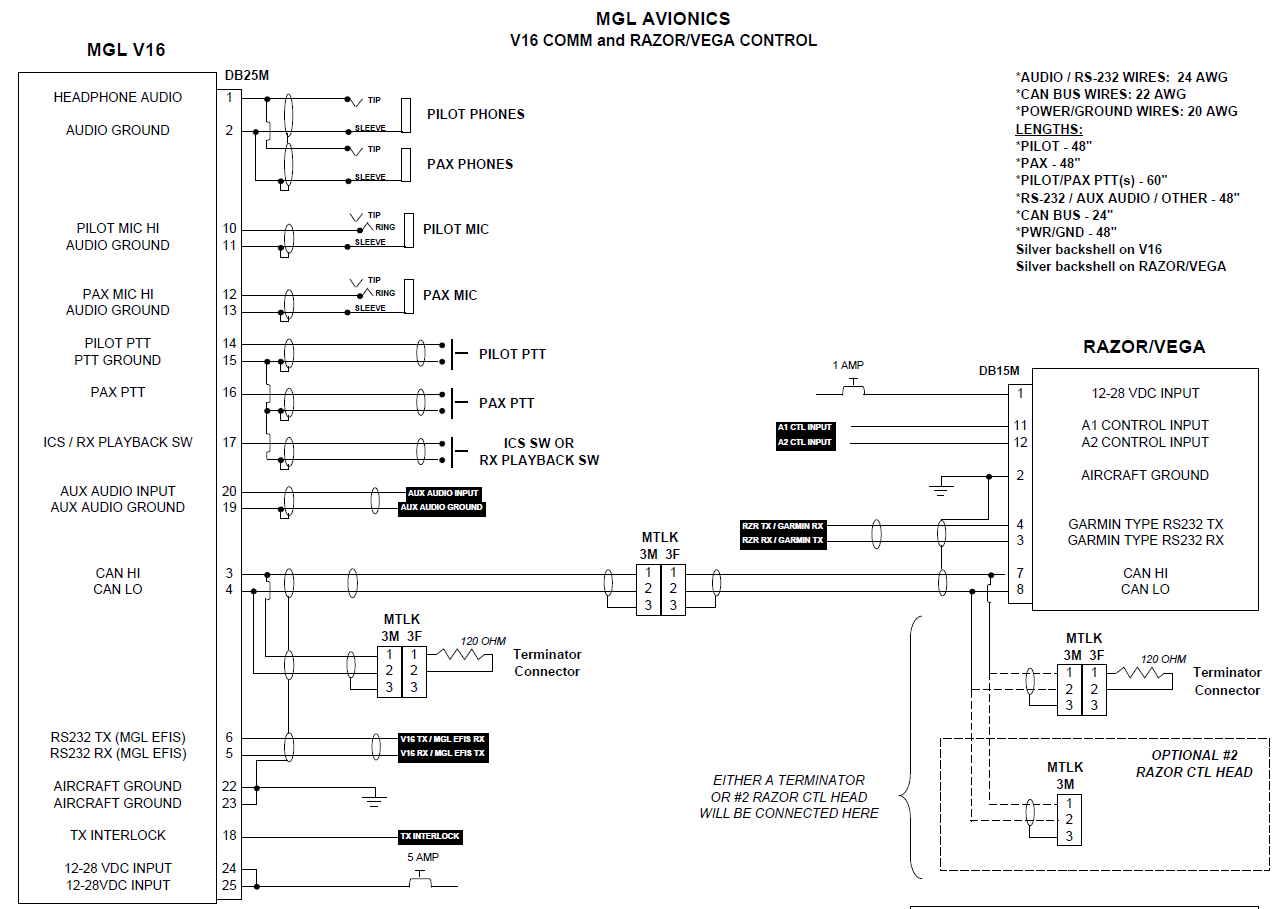

Attached are harness schematics for connecting up a 2-place (or single place) harness for wiring the V16 COM Radio and connecting to Razor and Vega Control Heads. Harness available for purchase from MGL Avionics.

​
