What is the K-Factor of the FT-90 or FT-180 Fuel Flow Sensors?

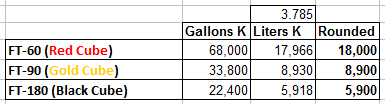

The K-Factor of all FT-90 Gold Cube and FT-180 Black Cube Fuel Flow transducers is the same:

(Note: MGL Avionics uses Liters K-factors for flow sensors)
