XTreme EFIS/EMS Dimensions Dimensions

XTreme EFIS/EMS Dimensions Dimensions

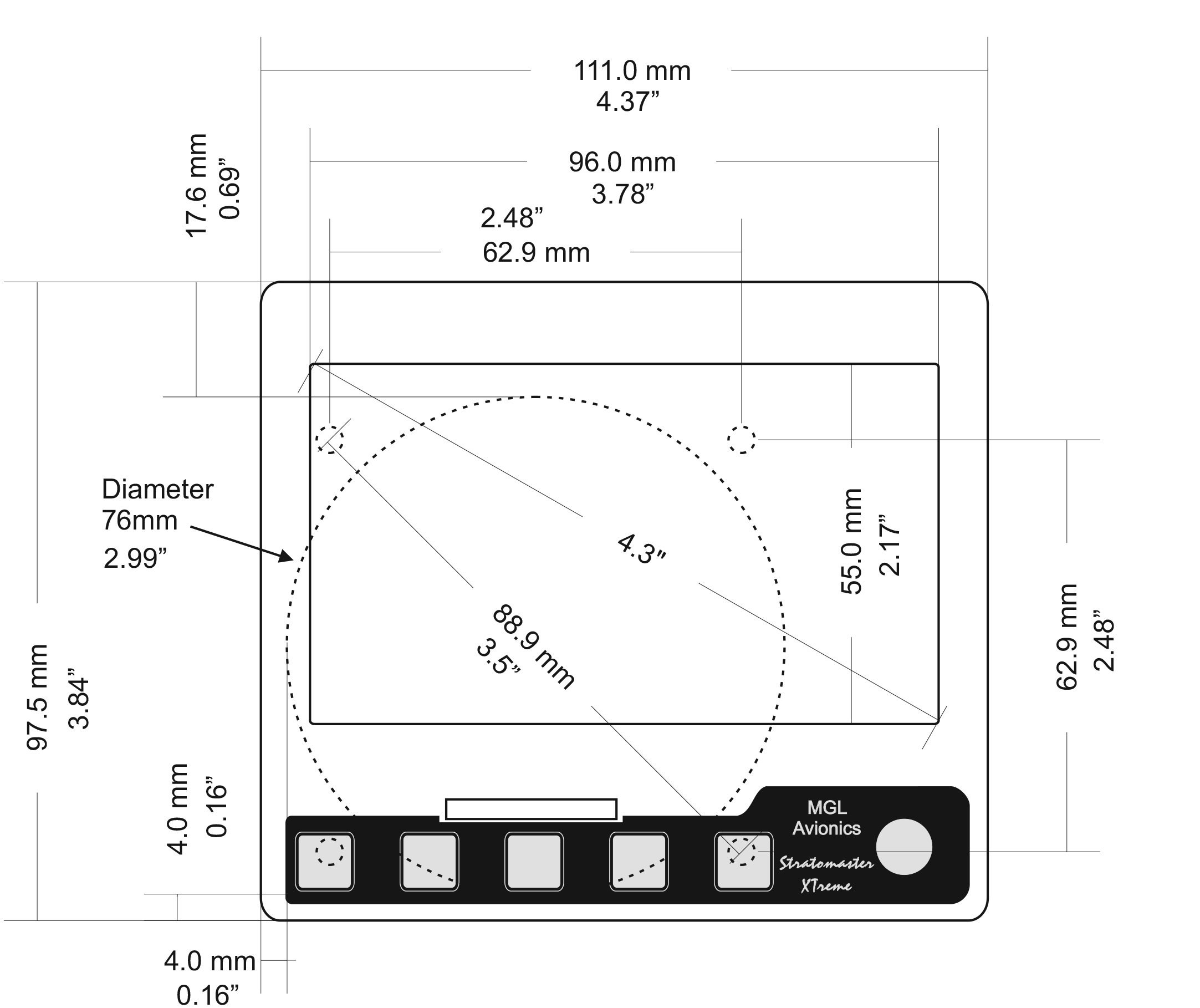

Attached are the dimensions and size of the XTreme EFIS and EMS
