XTreme EFIS Harness Wiring Schematics - CAN bus

XTreme EFIS Harness Wiring Schematics - CAN bus

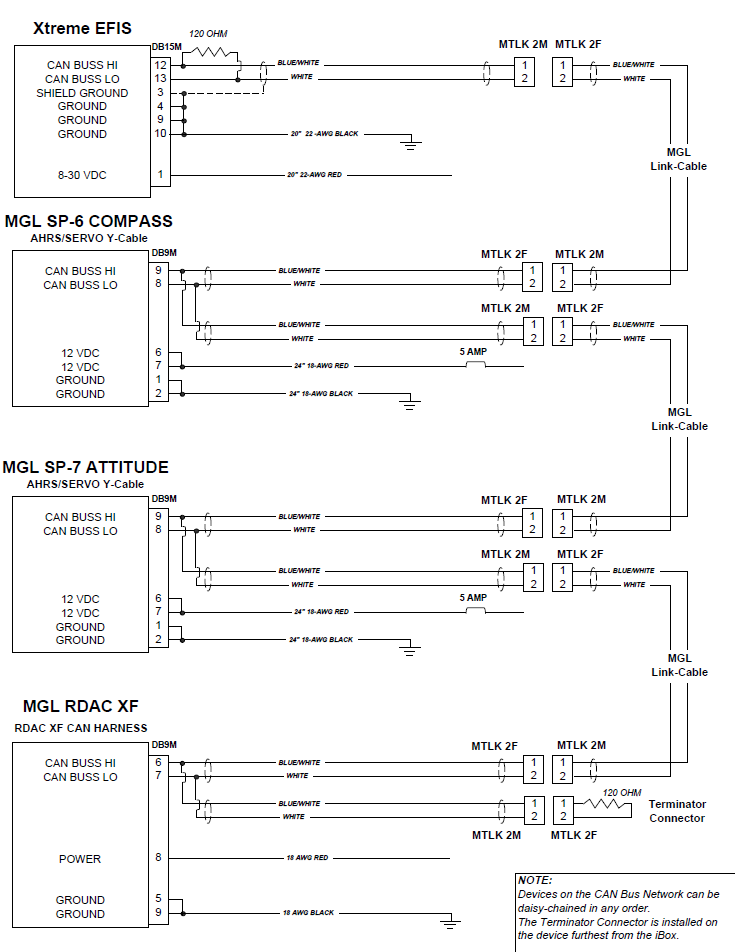

Attached below are the harness schematics and pin-outs to connect the XTreme EFIS. Same harness can be used for XTreme EMS (but no AHRS sensors or servos connected). Simple XTreme EFIS/EMS and RDAC harness schematic here.

​
